Kaleo Kit

Spectral Range UV (190 - 400 nm) VIS - NIR (400 - 1100 nm) SWIR (900 - 1700 nm) MWIR (3 - 5 μm)

Kaleo Kit is a modular system for optics qualification. It combines a broad range of compatible modules, that let you create a cost-effective, compact, and easy-to-use system that can adapt to a wide range of measurement configurations and ensure the quality of your sample at all development stages. Access all the characteristics of your sample in a single shot acquisition: TWE, RWE, wavefront aberrations, MTF, PSF, and a lot more!

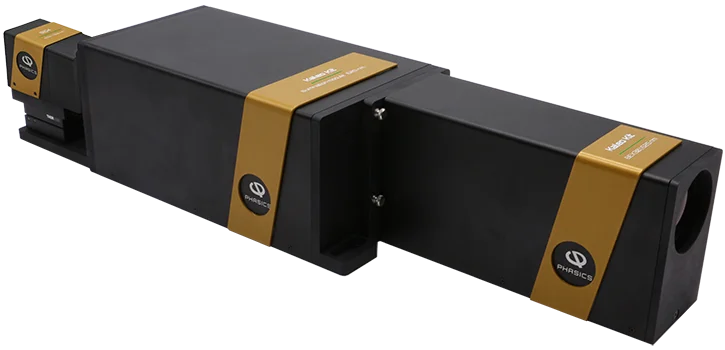

picture of Kaleo Kit, a modular wavefront metrology solution developped by Phasics

Key features

Versatile: available from UV to IR, modules compatible with stand-alone use
Powerful unique technology: high resolution, large dynamic range, nanometric sensitivity
Easy-to-use: compact and easy to align

Applications

Optics metrology and optical system alignment

Specifications

1 - Choose your wavefront sensor	SID4 UV / SID4 / SID4 HR / SID4 UHR / SID4 SWIR / SID4 SWIR HR / SID4 DWIR
2 - Select your R-Cube wavelength (nm)*	365 / 405 / 530 / 625 / 740 / 780 / 810 / 850 / 940 / 1050 / 1550 / 3900
3.1 - Shape your beam with a focusing system (F#)*	0.7 / 0.9 / 1.3 / 2.1 / 3.3 / 5 / 9
3.2 - Shape your beam with a beam expander – Exit pupil diameter (mm)*	8 / 15 / 30 / 60 / 100/ 130
+ Reference mirror	Flat or sphere

*more options upon request

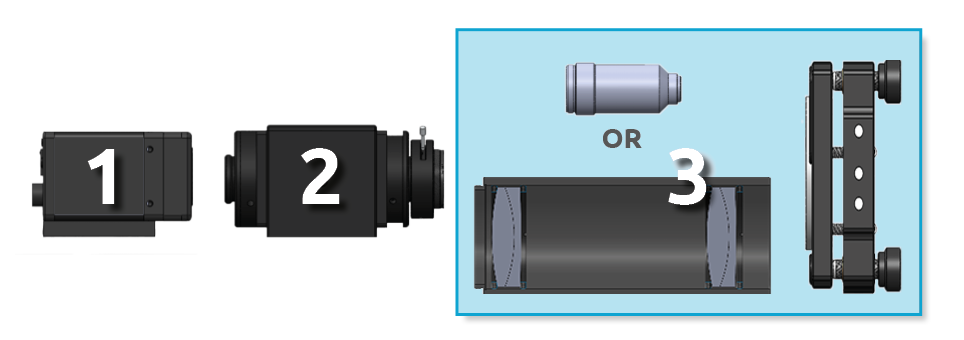

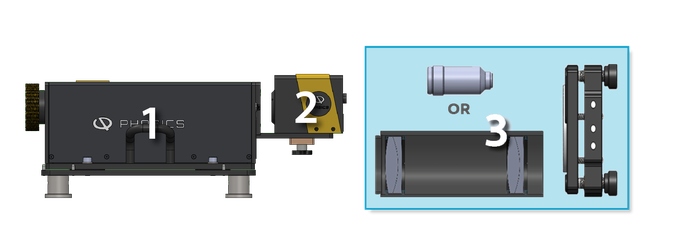

schematic of the different Kaleo Kit choices of modules to assemble an optics testing station

Downloads

Related products

Phasics SID4 HR wavefront sensor

SID4 HR

High resolution wavefront sensor

The SID4 HR brings ultra-high phase sampling (416 x 360) and high dynamic range (500 µm PV) to the most ...

Phasics SID4 SWIR HR wavefront sensor

SID4 SWIR HR

High resolution SWIR wavefront sensor

The SID4 SWIR HR wavefront sensor integrates Phasics' patented technology with an InGaAs detector. Thanks to its ultra-high spatial resolution ...

Phasics SID4 UV wavefront sensor

SID4 UV

Cost-effective, high resolution UV wavefront sensor

Bringing high-resolution wavefront sensing as low as 190 nm, the SID4 UV is perfectly suited for UV optics testing, UV ...

Phasics SID4 wavefront sensor

SID4

Cost-effective, high resolution wavefront sensor

Our entry-level yet high-resolution wavefront sensor covering the visible and NIR range, the SID4 is the perfect versatile tool for ...

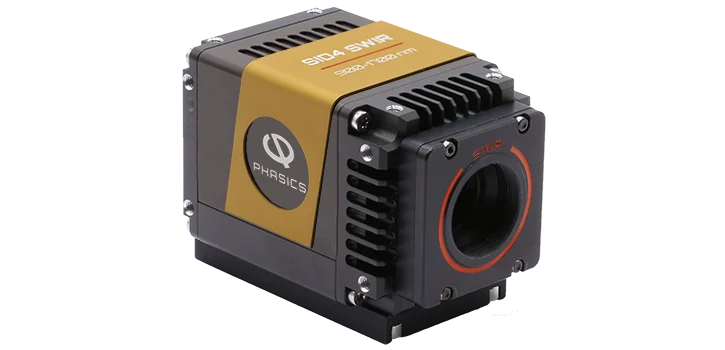

Phasics SID4 SWIR wavefront sensor

SID4 SWIR

Cost-effective short wave IR wavefront sensor

The SID4 SWIR wavefront sensor integrates Phasics' patented technology with an InGaAs detector. Thanks to its high spatial resolution (80 ...

Phasics SID4 DWIR wavefront sensor

SID4 DWIR

Dual band wavefront sensor for the 3 - 5 µm and 8 - 14 µm bands

The SID4 DWIR is the first off-the-shelf high-resolution wavefront sensor for dual-band infrared from 3 to 5 µm and 8 ...

Phasics Kaleo MultiWAVE test station

Kaleo MultiWAVE

Cost-effective, dynamic interferometer at any wavelength

Phasics is innovating in optical metrology with a new instrument able to measure both transmitted and reflected wavefront error (TWE/RWE). ...

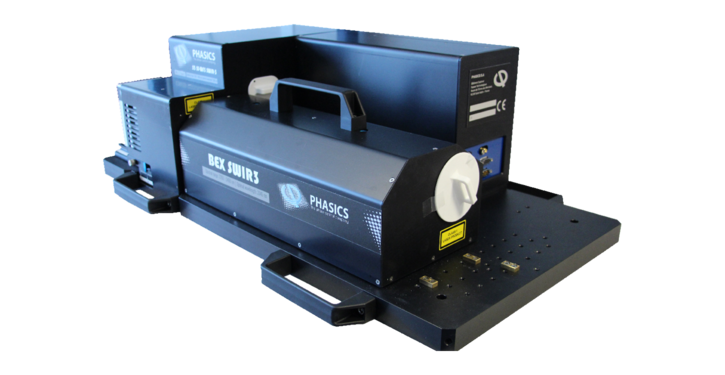

Phasics Custom made optical test stations
