SID4 HR
Spectral Range VIS - NIR (400 - 1100 nm)
The SID4 HR brings ultra-high phase sampling (416 x 360) and high dynamic range (500 µm PV) to the most demanding wavefront measurement applications. Its large aperture and extreme wavefront sensitivity makes it perfectly suited to direct measurement of large diverging beams without relay optics.
Key Features
- Very high resolution (416 x 360 phase pixels)
- Large analysis pupil: 9.98 x 8.64 mm²
- Direct measurement of high NA beam up to 0.8
Applications
• Laser testing, adaptive optics, and plasma diagnostics • Optics metrology and optical system alignment • Material inspection •
Specifications
| Wavelength range | 400 - 1100 nm |
| Aperture dimension | 9.98 x 8.64 mm² |
| Spatial resolution | 24 µm |
| Phase and Intensity sampling | 416 x 360 |
| Resolution (Phase) | <2 nm RMS |
| Accuracy | 20 nm RMS |
| Acquisition rate | 10 fps |
| Real-time processing frequency* | 3 fps (full resolution) |
| Interface | Giga Ethernet |
| Dimensions (WxHxL) | 80 x 77.5 x 86.4 mm³ |
| Weight | ~600 g |
*with SID4 Software
Related products
SID4
Cost-effective, high resolution wavefront sensor
Our entry-level yet high-resolution wavefront sensor covering the visible and NIR range, the SID4 is the perfect versatile tool for ...
R-Cube Illumination module
Illumination source add-on for double-pass configuration
The R-Cube is an add-on for easy double-pass measurement with Phasics' wavefront sensors. It applies to mirror and large-lens aberration ...
SID4 SWIR
Cost-effective short wave IR wavefront sensor
The SID4 SWIR wavefront sensor integrates Phasics' patented technology with an InGaAs detector. Thanks to its high spatial resolution (80 ...

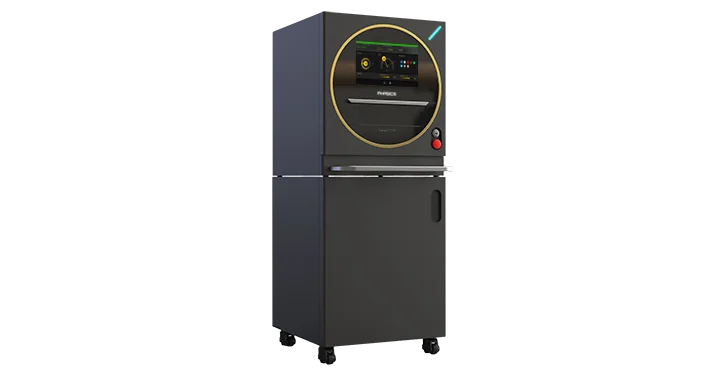

Kaleo MTF station
