Kaleo MultiWAVE
Spectral Range UV (190 - 400 nm) VIS - NIR (400 - 1100 nm) SWIR (900 - 1700 nm) MWIR (3 - 5 μm) LWIR (8 -14 μm)

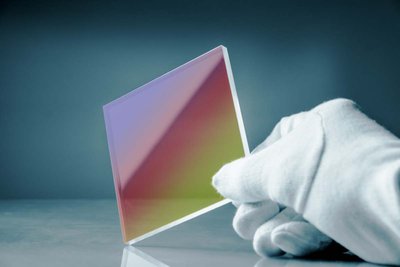

Phasics is innovating in optical metrology with a new instrument able to measure both transmitted and reflected wavefront error (TWE/RWE). Coated and uncoated optics can be qualified over a diameter of 5.1 inches (130 mm) at their working wavelengths. The Kaleo MultiWAVE is an advantageous alternative and cost-effective solution to the purchase of several interferometers. The system offers a measurement accuracy comparable to Fizeau interferometry.
Key Features
- Any wavelength on demand: UV - VISIBLE - NIR - SWIR - MWIR - LWIR
- Multiple wavelengths on the same test bench
- Nanometric phase resolution and large dynamics (> 500 fringes)
Applications
Specifications
SYSTEM
| Configuration | Double pass |
| Measurement capability | RWE of reflective surfaces TWE of transparent optics |
| Number of wavelengths per instrument | 1 or 2 (standard), up to 8 (custom) |
| Custom Wavelengths | Any wavelength from 193 nm to 14 μm including: UV: 266, 355, 405 nm VIS / NIR: 550, 625, 780, 940, 1050 nm SWIR / MWIR / LWIR: 1.55, 2.0, 3.39, 10.6 µm |
| Clear Aperture | 5.1" (130 mm) |
| Beam height | 108 mm |
| Alignment system | Live phase & Zernike coefficients display |
| Polarization | Compatible with depolarizing optics |
| Alignment FOV | +/- 2° |
| Pupil focus range | +/- 2.5 m |
| Dimensions / Weight | 910 x 600 x 260 mm³, 25 kg |
| Vibration isolation | Not necessary |
PERFORMANCES (1)
| RMS repeatability (2) | < 0.7 nm (< λ / 900) |
| Sample reflectivity range | ~4% - 100% |
(1) On a 4″ pupil size, with a 625 nm source
(2) 36 sequential measurements are performed on a 4” reference mirror, each being averaged 16 times. A reference is defined as the average of all odd numbered measurements. RMS repeatability is then defined as the average RMS difference plus 2 times the standard deviation of the difference between even numbered measurements and the reference.
