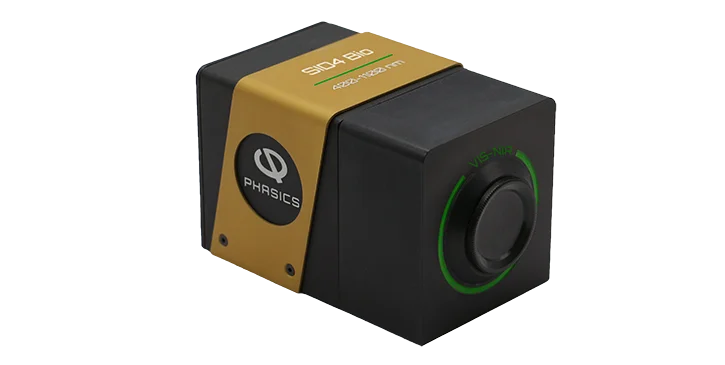

SID4 Bio
Spectral Range VIS - NIR (400 - 1100 nm)
The SID4 Bio is a plug & play camera for quantitative phase imaging. It works with any optical microscope and enables measuring valuable numerical parameters on living cells and many more transparent samples.
Key features
- Unique technology for instantaneous artefact-free quantitative phase imaging
- Compact and plug and play
- Easy to integrate - robust design
Applications
Specifications
SID4 Bio
| Wavelength range | 400 - 1100 nm (compatible with white-light source, laser...) |
| Magnification | 10x to 200x |
| Aperture dimension | 9.98 x 8.64 mm² |
| Phase and Intensity sampling | 416 x 360 |
| Lateral resolution | Depends on magnification - Down to 0.2 μm on phase image x 120 |
| Resolution (Phase) | < 2 nm RMS |
| Acquisition rate | 10 fps |
| Dry mass resolution | < 0.5 pg |
| Microscope interface | C-mount |
| Dimensions | 73 x 71 x 90 mm² |
| Interface | Giga Ethernet |
| Weight | ~ 450g |
